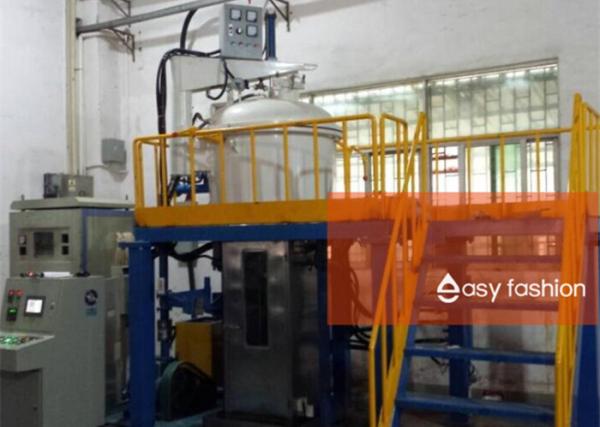

High Degree Of Automation Vacuum Directional Solidification Furnace With Cobalt - based For Car
I. Overview
This series of vacuum directional solidification furnace is a modern equipment working for melting metal or alloy with medium-frequency induction heating under vacuum, forming thermal gradient with specialized-designing holding furnace and cooling system, and production of directional solidified and single-crystal parts by pulling down mechanism. It can strictly control temperature and alloy content of materials.
This furnace is primarily applied to the production of silver-based, iron-based, and cobalt-based high-temperature alloys, and the high-quality products made of these alloys are commonly practiced into aerospace turbine engine industry, vehicle, chemistry field and entertaining fields.
II. Technical specifications
| Model |
EF-ZKD-25 |
EF-ZKD-100 |
| Capacity (based on steel) (kg) |
25 |
100 |
| Pressure rising rate (Pa/h) |
≤0.67 |
| Ultimate vacuum |
6.67×10-3Pa/1Pa |
| Working vacuum degree |
6.67×10-2Pa/10Pa |
| Input power supply |
3 phase, 380V±10%, 50Hz |
| Output frequency (Hz) |
2500 |
| Supply power (kW) |
60 |
160/200 |
| Total power (kVA) |
100 |
280 |
| Output voltage (V) |
375 |
| Max. working temperature (°C) |
1700 |
| Total weight (calculated value) (t) |
4 |
8 |
| Cooling water consumption (m3/h) |
2.7 |
4.8 |
| Cooling water pressure (MPa) |
0.2~0.4 |
| Input water temperature (°C) |
20 |
| Holding furnace power |
Two stages (three stages) |
| Holding furnace heating method |
Resistance heating (induction heating) |
| Note: The above is standard configuration which is adjustable based on customer requirements. |
| |
|
|
III. Features
1. Overall designing furnace, occupying small area
2. Intelligent control system
3. Process accurate controlling technology
It adopts variable-frequency speed regulating motor to precisely control the elevation of fixed model;
High-effective power control (IGBT/PID);
Temperature correction control (infrared/thermocouple).
4. Security Advantages
Large-scale explosion-proof device;
Automatic pressure relief device; Back-pressure filling device;
Leakage checking apparatus.
